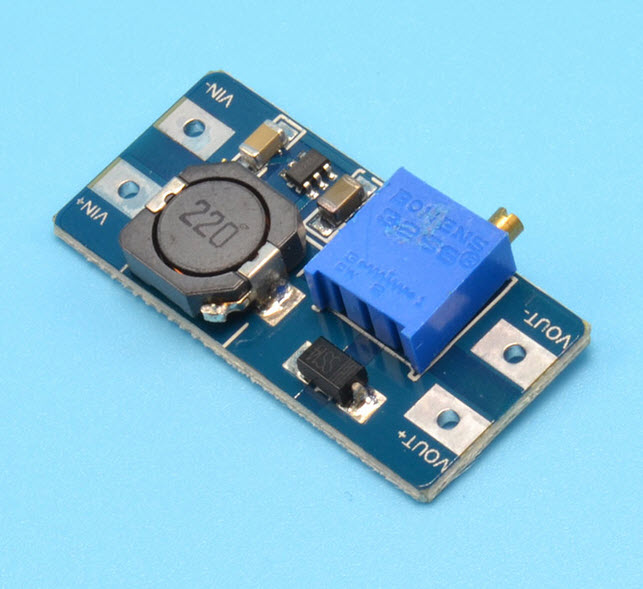

MT3608 DC-DC Step Up Power Apply Module Booster Power Module MAX output 28V 2A

MT3608 2A DC-DC Step Up Booster Power
Specifications

• 2V to 24V input voltage with output boost 5V to 28V adjustable
• Maximum output current: 2A
• Input voltage: 2V ~ 24V
• Maximum output voltage: > 5V - 28V
• Efficiency: > 93%
• Input voltage should not exceed the maximum input voltage
• Peak current output current should not more than 2A
• Output voltage should always be higher than Input voltage

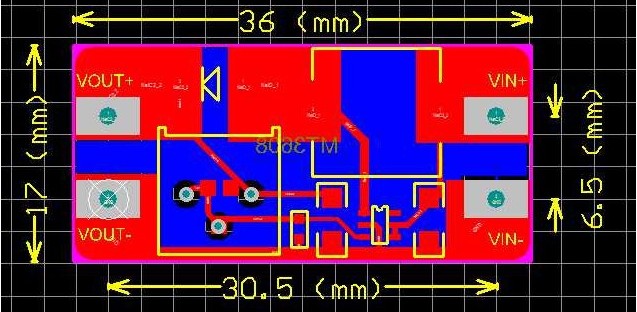

• PCB Size: 36 mm * 17 mm * 14 mm

How to use

• Connect the the IN+ and IN- of the module with 2~24V
• Adjust the potentiometer to adjust the output voltage. Please note that the output voltage should be higher than the input voltage.
