BLE-Nano for Arduino Nano V3.0 Mirco USB Board Integrate CC2540 BLE Wireless Module ATmega328P Micro-Controller Board

Main Feature

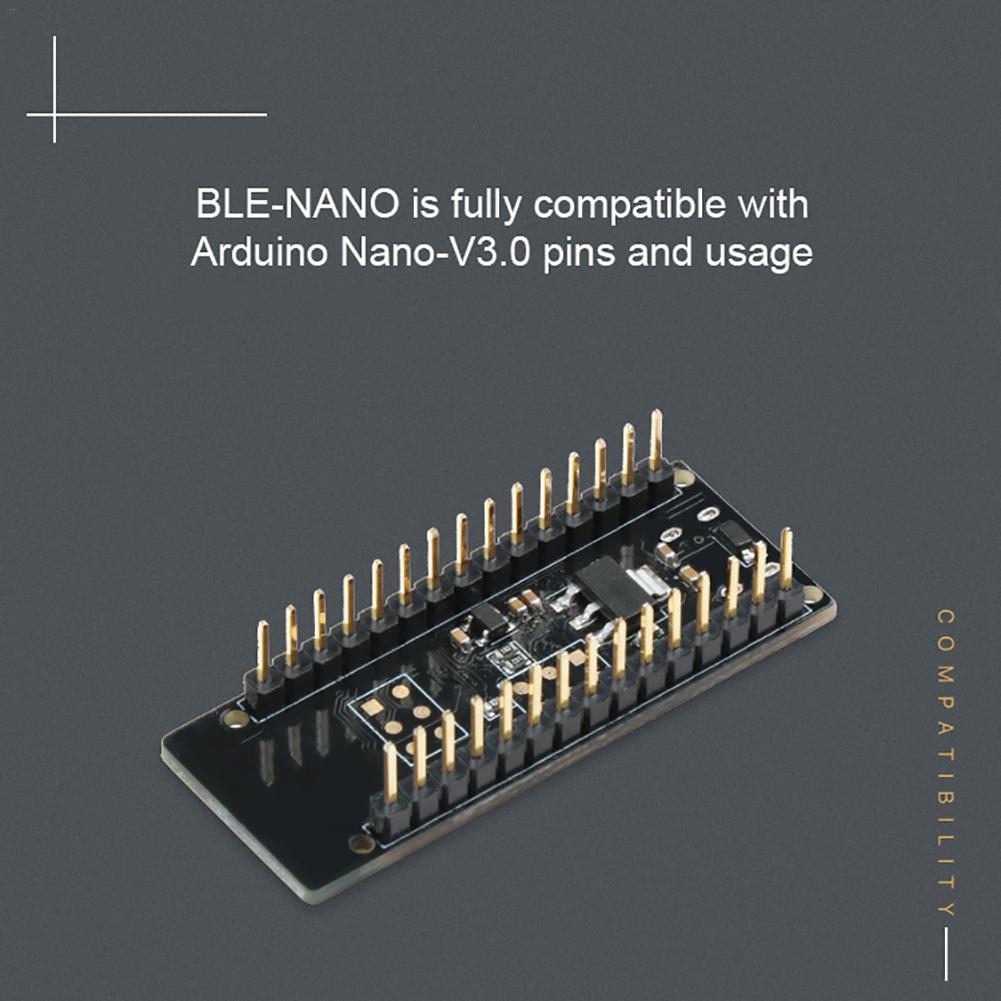

Creative products,BLE-Nano-Board:Keywish Upgraded nano board for arduino,The main chip is ATMEGA328P-MU QFN32,the latest bootloader (Arduino IDE 1.8.8) was burned down.It is fully compatible with the common nano board.BLE-Nano-Board is PIN-PIN with Arduino Nano V3.0,and share the same

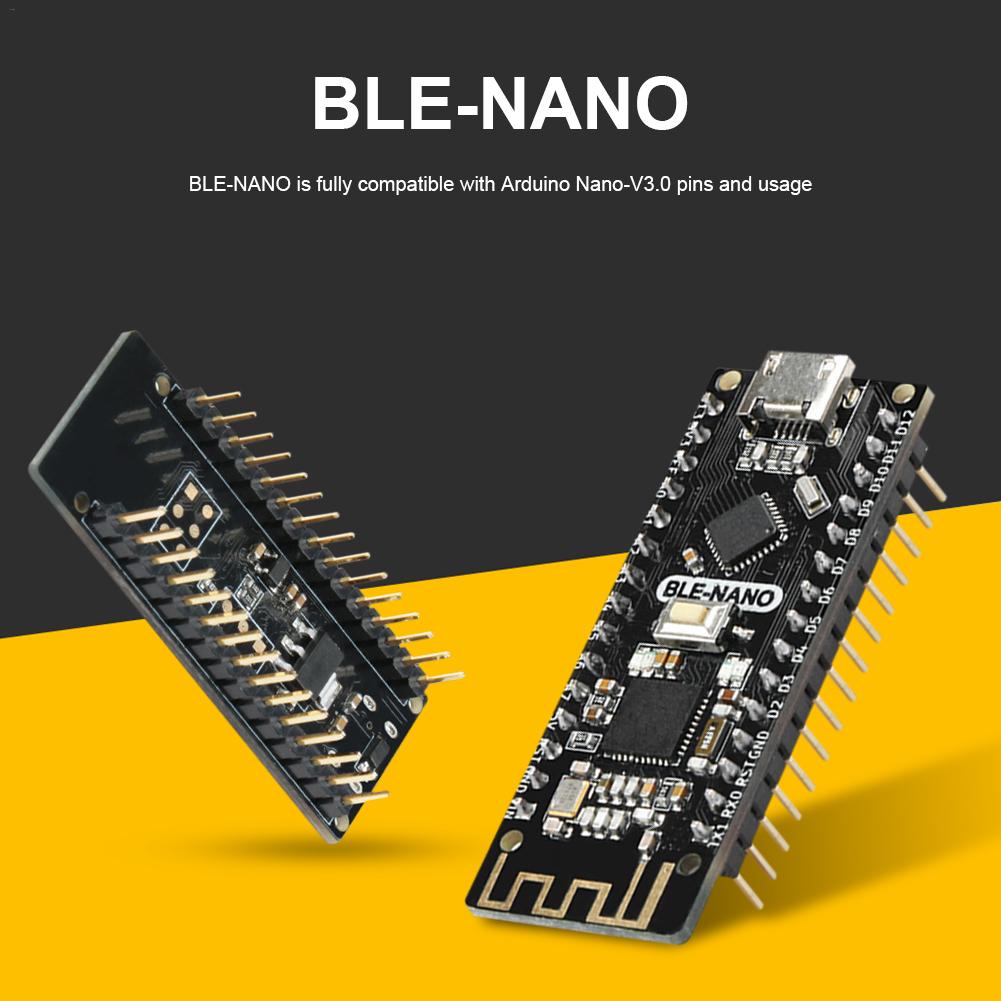

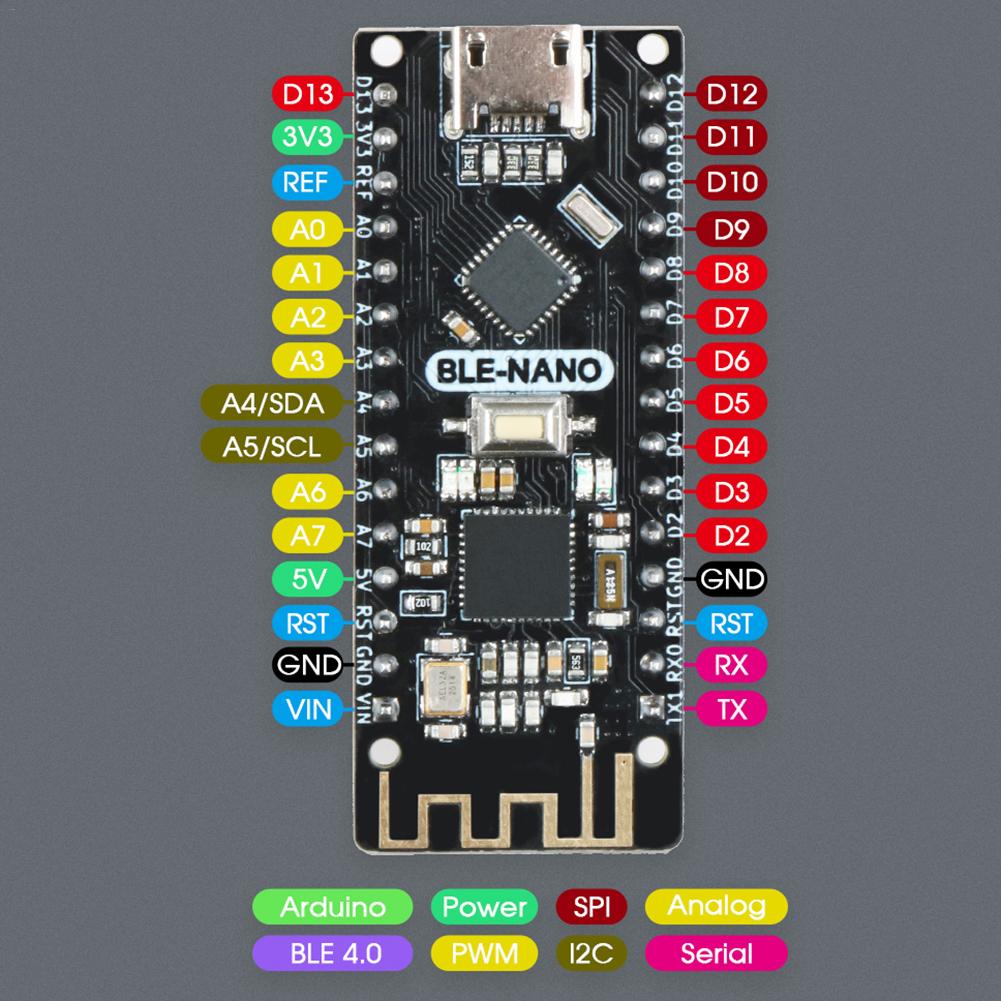

Super small volume design,more convenient to use:The PCB size is only 48mm*19mm,the pin is fully compatible with Nano V3.0,No Soldering needed.The micro usb port is more convenient to use



High quality material and Technology:The bluetooth is used TI CC2540 BLE (SOC) chip.Maximum support 1Mbps air data transfer rate,stable performance.Communication distance can reach 50M in an open environment.

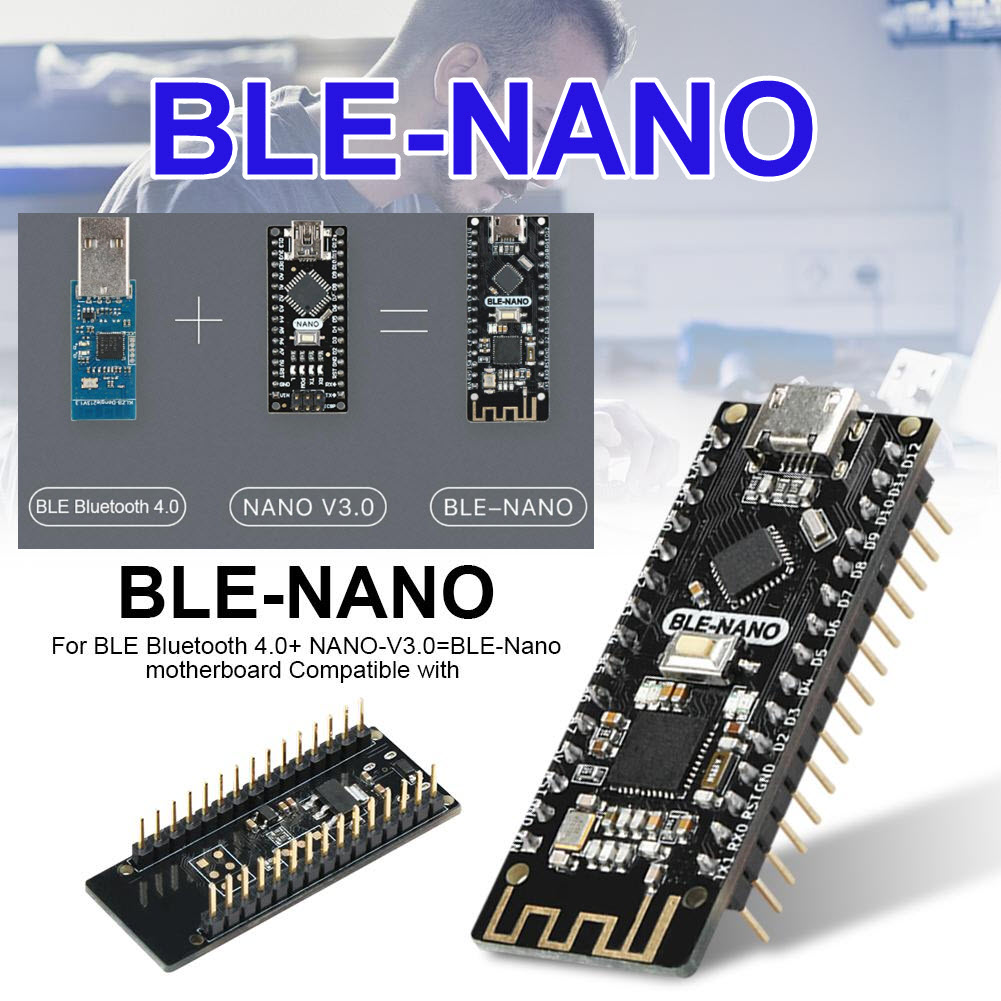

More convenient for application:BLE-Nano-Board integrates a CC2540 BLE module with arduino nano v3.0 board,which is very convenient for Bluetooth wireless connect application.



Complete Information reference: If you need data sheets and schematics or other informations,  you can download from
https://github.com/keywish/keywish-nano-plus/tree/master/BLE-Nano

Note

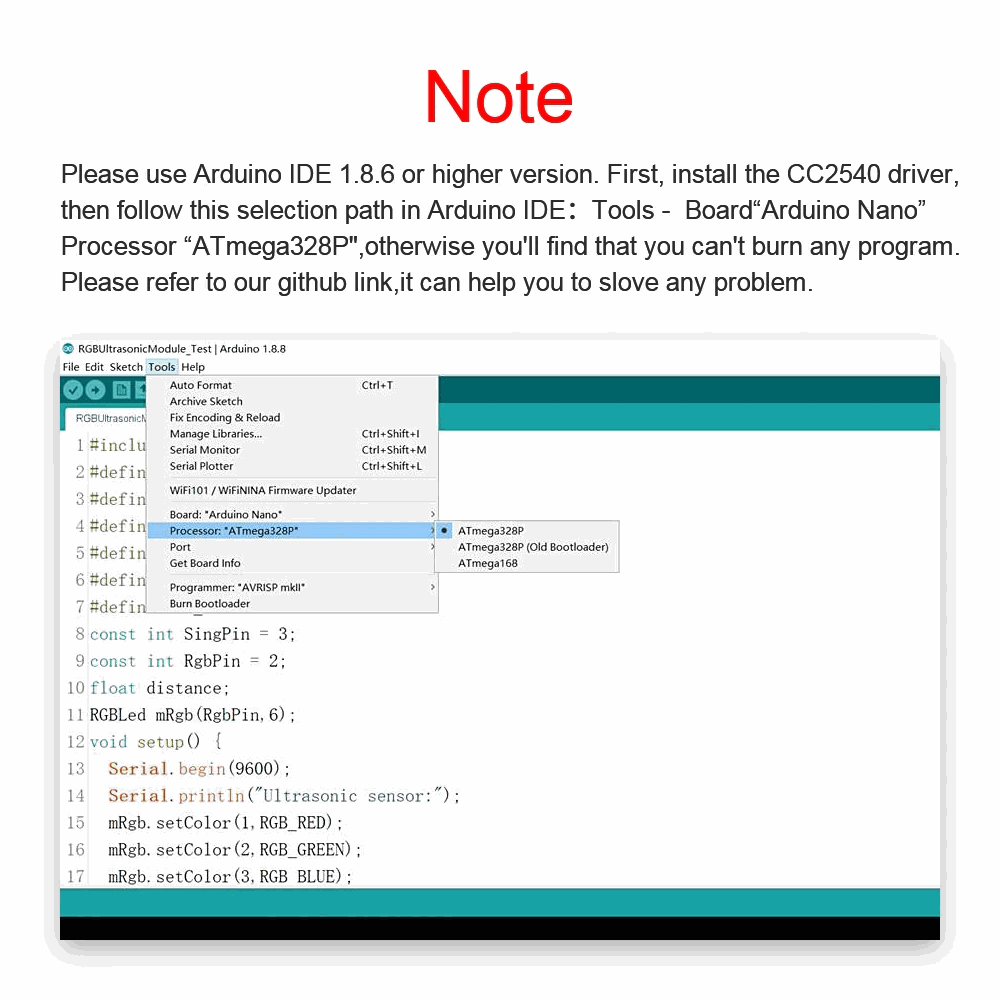

Please use Arduino IDE 1.8.6 or higher version. First, install the CC2540 driver,then follow this selection path in Arduino IDE：Tools -  Board“Arduino Nano” Processor “ATmega328P",

otherwise you'll find that you can't burn any program. Please refer to our github link,it can help you to slove any problem.
