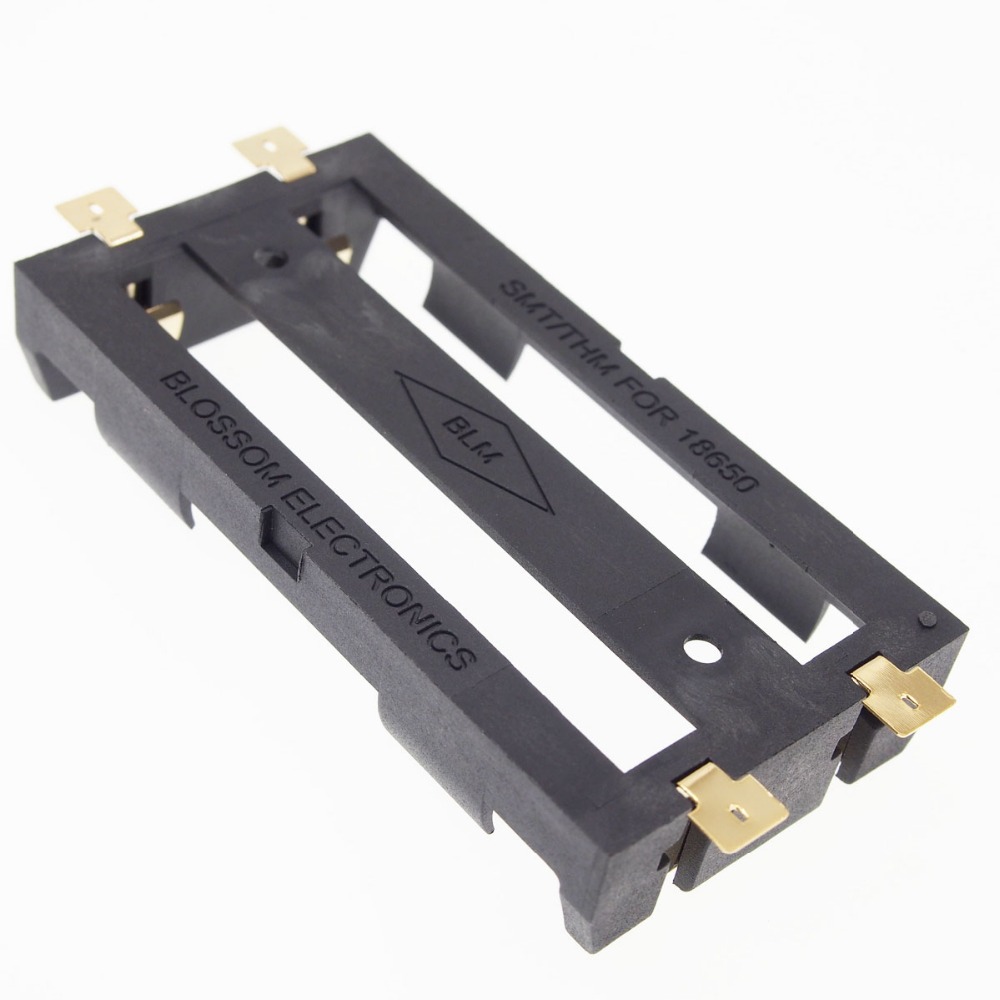

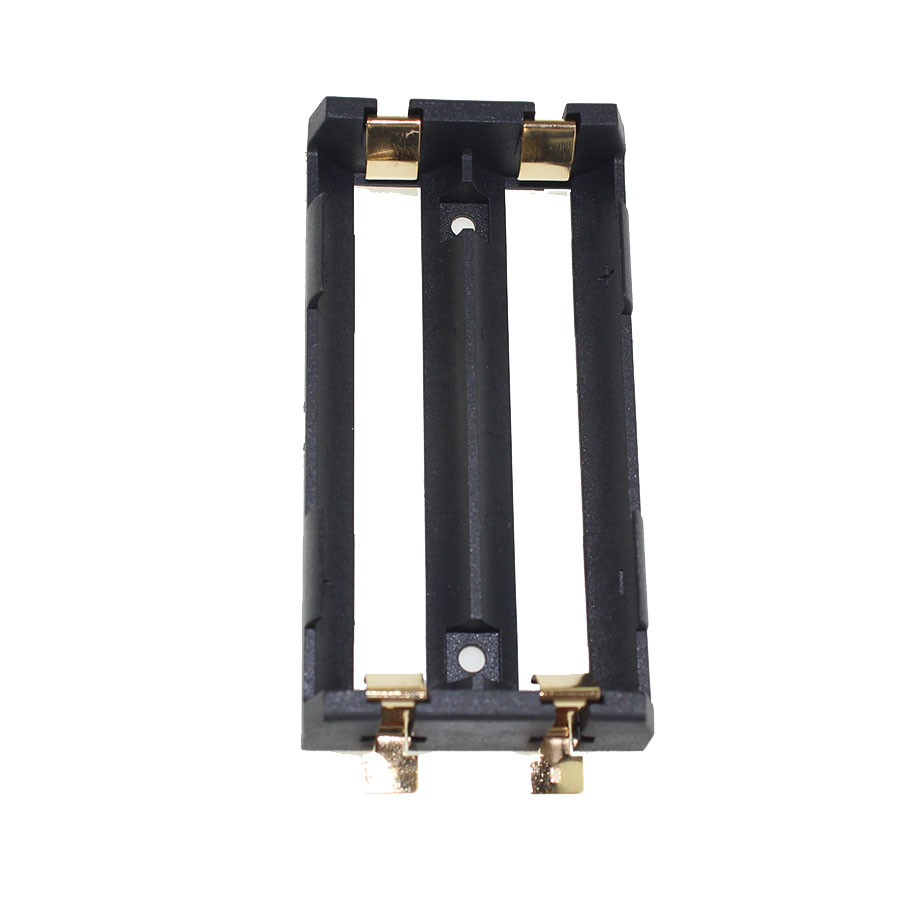

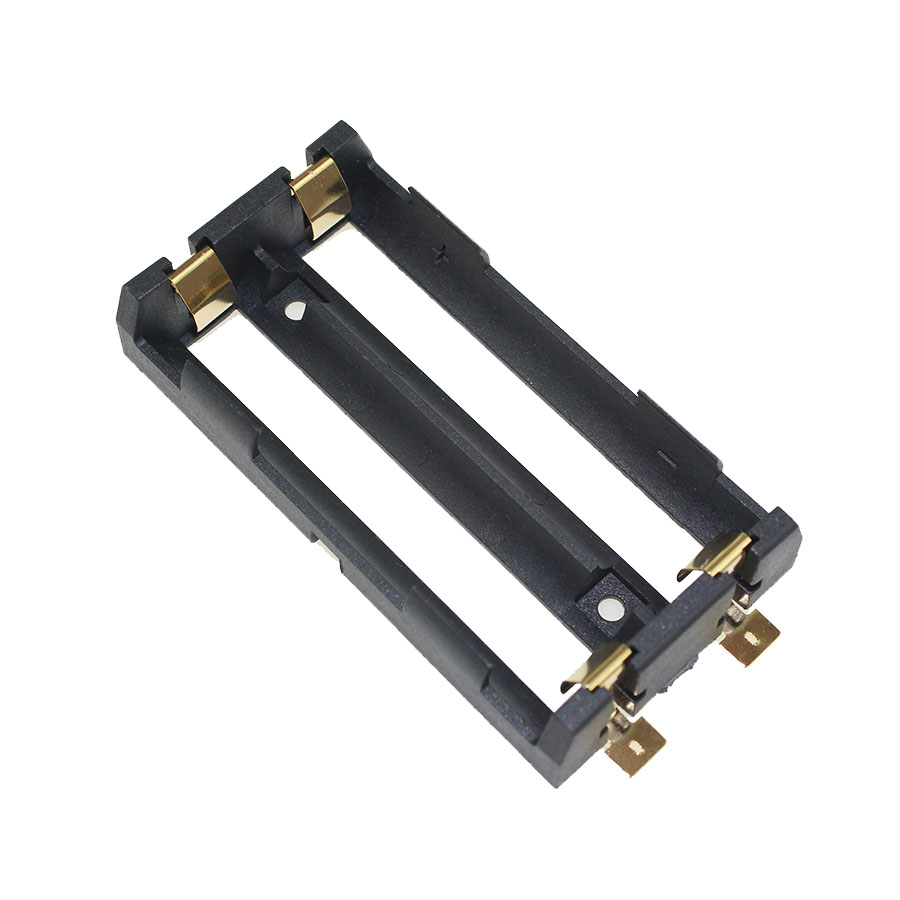

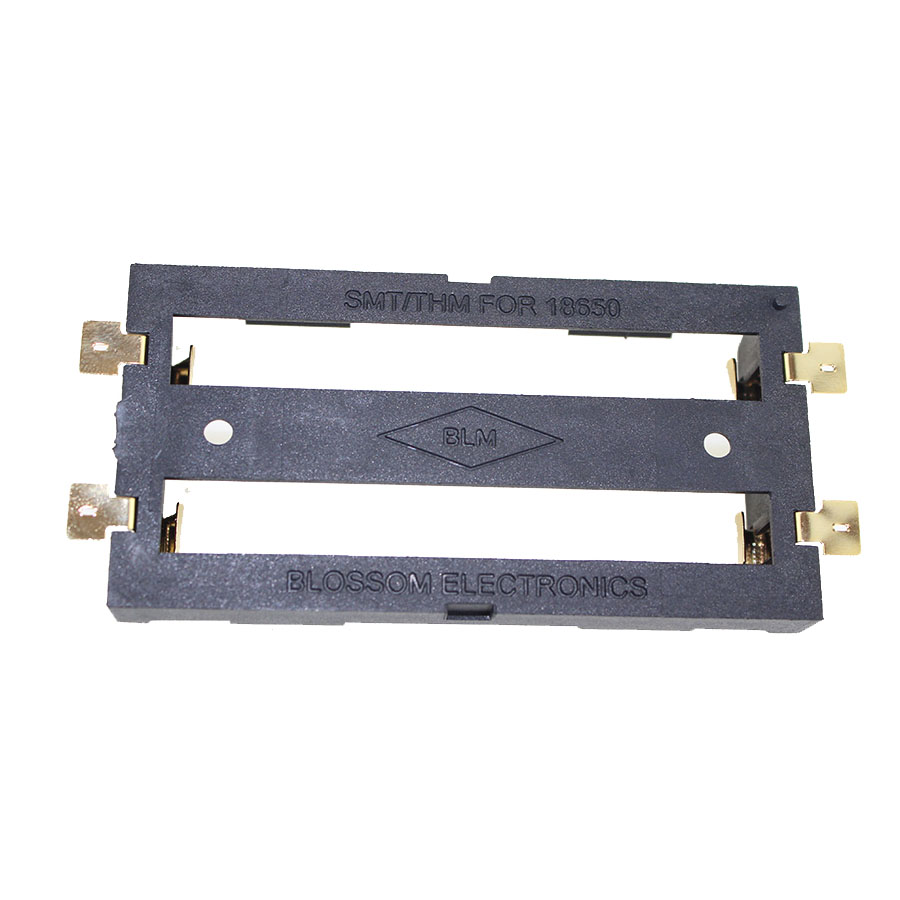

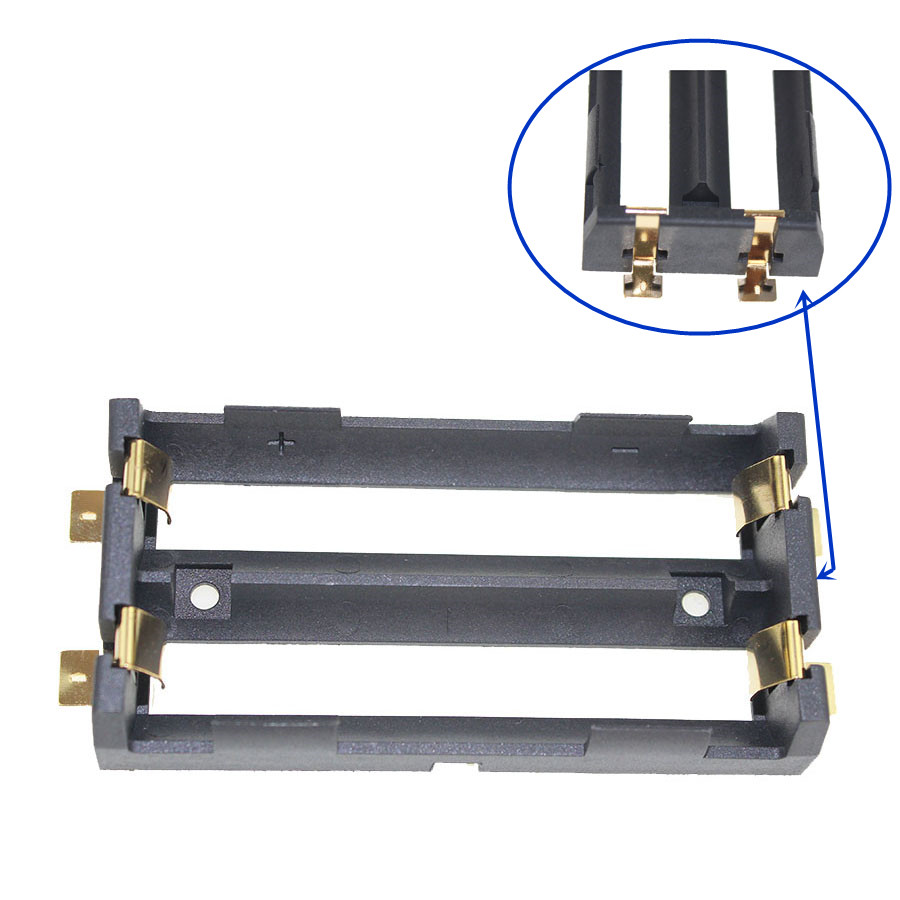

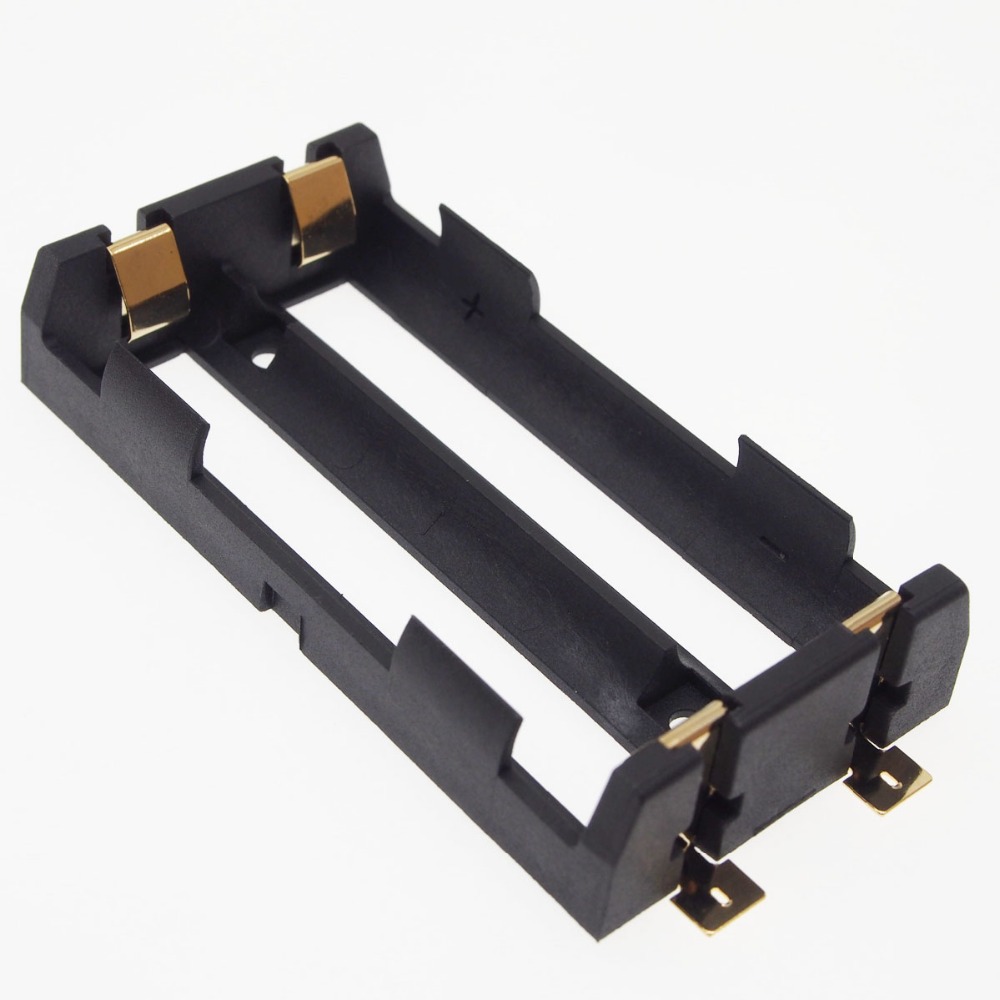

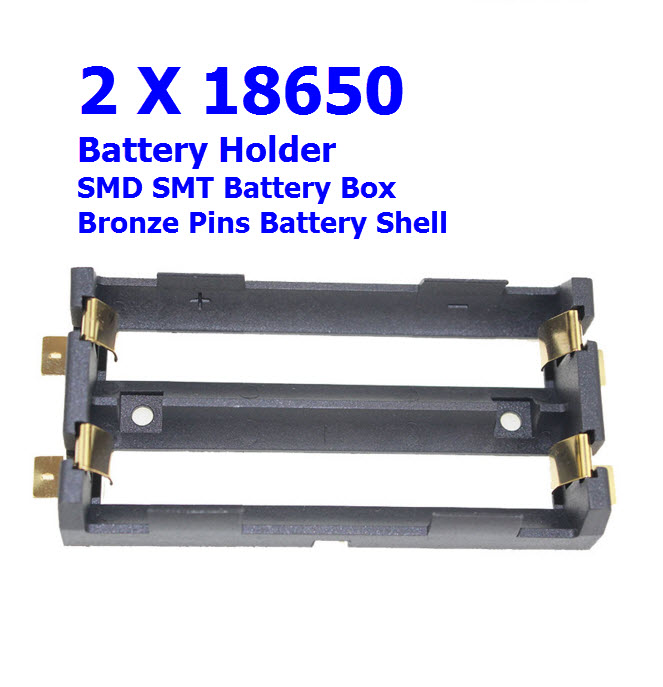

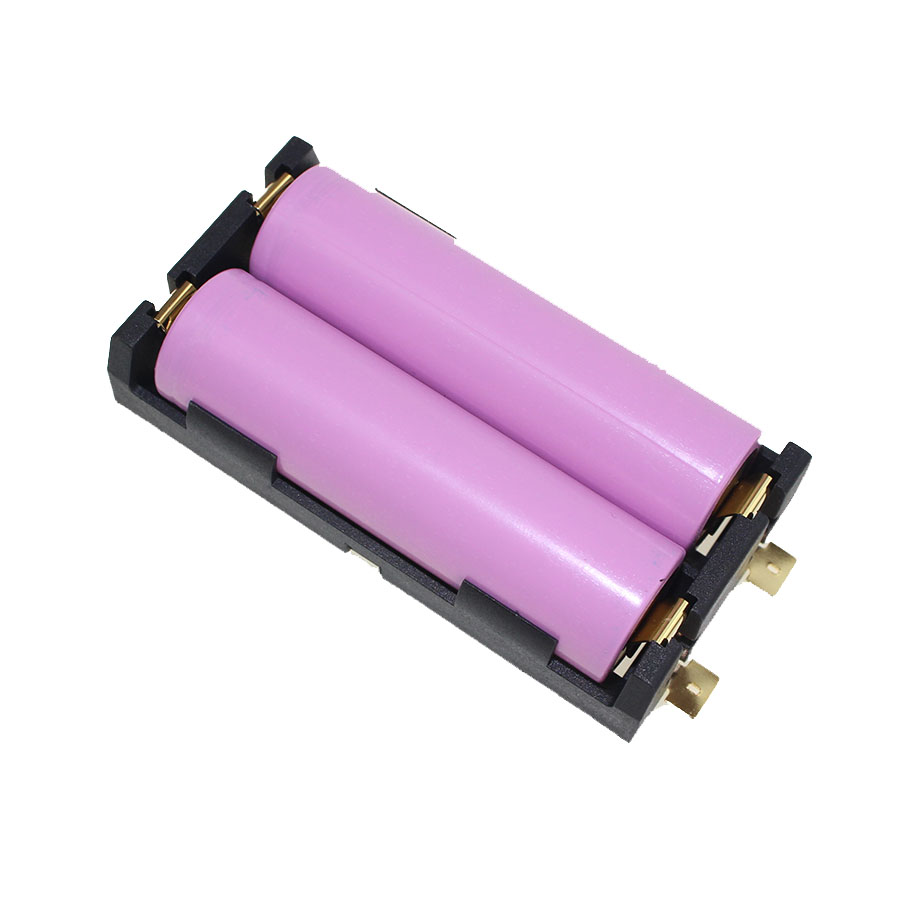

diy box mod component plastic material 2*18650 battery sled dual 18650 battery box with SMD (SMT) Tab

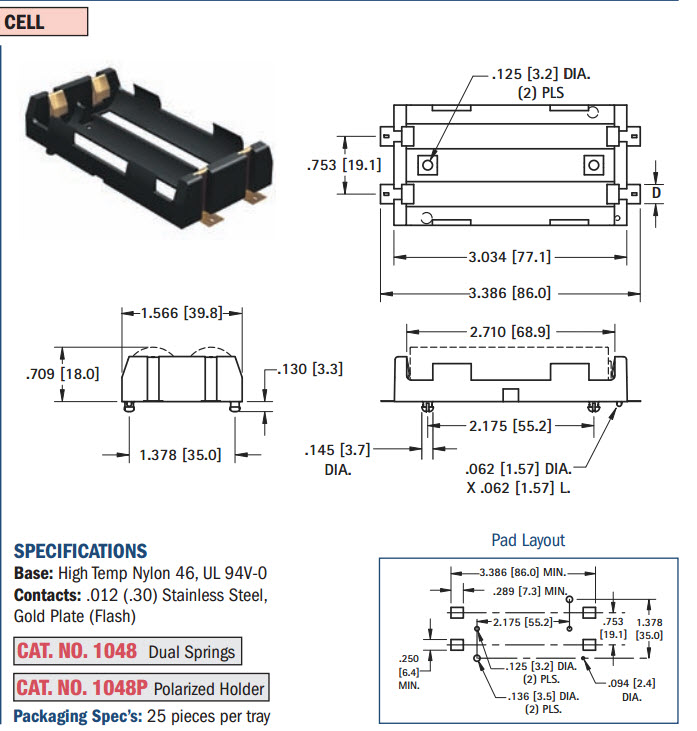

Specification
Designed for the demands of securing the higher energy density and lower weight rechargeable 18650 Lithium-Ion Cells with built-in PCB protection circuits.
these holders are specifically engineered to withstand the rigors of abuse and recharging cycles associated with the 18650 Lithium-Ion cell usages. 1049 are ideal for 3.7 volt, high energy, lower weight mobile electronics, industrial and telecomm applications that have circuit protection to prevent battery damage.
Holders feature snap-in PC contacts which assure stability during wave soldering. These low profile, space saving holders are clearly marked with polarity identification to assure proper orientation.
The bodies are molded from UL 94V-0 rated plastics. Contacts are 0.012" (0.30mm) thick Spring Steel with Tin Nickel plating or Phosphor Bronze with gold flash plating. Optional snap-on, molded PBT UL 94V-0, tamper proof covers which help protect against severe shock, vibration and shorting potential are also available.
Why choose the 18650 battery holder?
1. The lithium battery power voltage is higher, long service life
2. External use ABS/PC material, insert material is bronze pin environmental protection material
3. Stainless steel shrapnel screens will hold the batteries, installation is very convenient to replace the battery, will not damage battery and other parts, convenient and quick, safe and reliable
Features:
- Thru-Hole, Surface Mount and Solder Lug configurations
- Snap-In PC contact holds in position for wave soldering (THM)
- Tin-Nickel Plated contacts for excellent soldering (THM & Lug)
- Gold Flash for outstanding solder performance (SMT)
- Polarity clearly marked for orientation
- Low Profile, space saving
Features:
- 100% Brand New and High Quality
- Its small size, moderate capacity, in many small appliances and digital products widely used.
- ROHS / REACH EU environmental standards, 6P no o-benzene, UL94V-0 flame retardant
Specifications:
- Item:1 slot 18650 Battery Storage Holder
- Support Model :18650 Battery
- Shell material: ABS fire, flame retardant, high temperature, color diversity and other materials for choice.
- Metal spring: carbon steel nickel plating by NCAA salt spray test, stainless steel spring.
- External: wire, welding pieces, pins, male and female buckle (3.7v button)
- Terminal: copper nickel plating
- Corn: nickel plated with copperv
Package Included:
- 1*(2slot) 18650 SMT/SMD Battery Storage Holder
*
*
