| รายละเอียดสินค้า |
CH341A สามารถ ทำงาน 2 อย่าง โดยเลือกจากจัมเปอร์ ที่อยู่บนบอร์ด
1.เป็นเครื่องโปรแกรม SPI FLASH memory 25 และ EEPROM I2C 24xxx
2. USB to RS232 (TTL) serial port ใช้การโปรแกรม หรือ upload ข้อมูล Set top BOX (STB) เคริื่องรับสัญญาณดาวเทียม

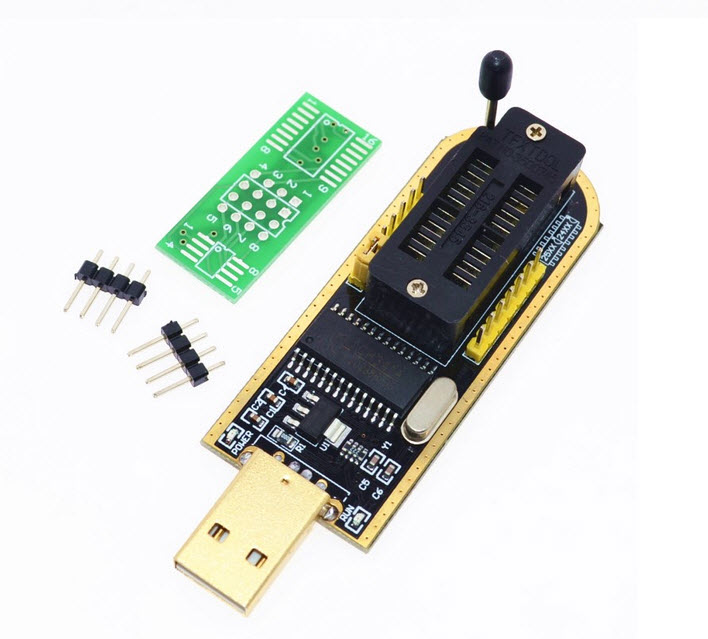

Smart Electronics CH341A 24 25 Series EEPROM Flash BIOS USB Programmer with Software & Driver
USB to RS232 (TTL) by select jumper
Software : CH341A Mini Programmer (Black Edition) By_NSC
Download Driver ได้ที่ CH341SER.ZIP USB to RS232 (TTL) serial port
USB to RS232 (TTL) serial port https://www.youtube.com/watch?v=N6aoacx8ruw
- USB Programmer
- Condition: New
- Support 24EEPROM and 25 SPI flash 8pin/16pin chip
- USB to TTL port, can getroot online
- With CH341A chip
- Recognize 25 series chip automatically
- And support download STC series procedure of singlechip
- With 24/25 status indicator lamp
- SPI pin to support expanding the utility
- Color is shown as pictures
- PLS NOTE that due to lighting effects, monitor\'s brightness/ contrass settings ect, there could be some slight differences in the color tone of the pictures and the actual item!
- Using specially produced CH341A chip USB. USB1.1 communications. Programming faster than ordinary ATMEGA8 do 25 Series Programmer 2-3 times faster. Erase the programming speed is probably 2-3Mbit check every minute. Very suitable for amateur programmer 24 and 25 series FLASH.
- Support WIN98, WINME, WIN2K, WINXP, VISTA, WIN7-32 bits, etc. operating systems.
- Using USB port power supply, the power output is 500mA fuse (with fuse version), which can effectively prevent a short circuit on the motherboard outside influence (to prevent burning the motherboard), the target board can simultaneously power supply with USB.
Support chips list:
- 24C01, 24C02, 24C04, 24C08 24C16, 24C32, 24C64, 24C128
24C256, 24C512, 24C1024, 24C2048, 24C4096
- AMIC:
A25L05P, A25L10P, A25L20P, A25L40P, A25L80P, A25L16P
- ATMEL:
AT25DF041A, AT25DF321, AT25F004, AT25F512A, AT25F2048, AT25F4096, AT25F1024A, AT25FS010, AT25FS040, AT26DF081A, AT26DF161A, AT26DF321, AT26F004
- EON:
EN25B05, EN25P05, EN25B10, EN25P10, EN25BF20, EN25P20, EN25F20, EN25B40, EN25P40, EN25F40, EN25B80,·EN25P80, EN25F80, EN25T80, EN25B16, EN25P16, EN25B32, EN25P32, EN25B64, EN25P64
- Excel Semiconductor Inc.
ES25P10, ES25P20, ES25P40, ES25P80, ES25P16, ES25P32
- ST:
M25P05A, M25P10A, M25P20, M25P40, M25P80, M25P16, M25P32, M25P64, M25PE10, M25PE20, M25PE40, M25PE80, M25PE16, M25PE32, M45PE10, M45PE20, M45PE40, M45PE80, M45PE16, M45PE32
- MXIC:
MX25L512, MX25L1005, MX25L2005, MX25L4005, MX25L8005, MX25L1605, MX25L3205, MX25L6405, MX25L6445, MX25L6405 (SOP16)
- NexFlash:
NX25P80, NX25P16, NX25P32
- Chingis Technology Corporation:
Pm25LV512, Pm25LV010, Pm25LV020, Pm25LV040, Pm25LV080, Pm25LV016, Pm25LV032, Pm25LV064
- Saifun Semiconductors:
SA25F005, SA25F010, SA25F020, SA25F040, SA25F080, SA25F160, SA25F320
- WINBOND:
W25P10, W25X10, W25Q10, W25P20, W25X20, W25Q20, W25P40, W25X40, W25Q40, W25P80, W25X80, W25Q80, W25P16, W25X16, W25Q16, W25P32, W25X32, W25Q32, W25P64, W25X64, W25Q64, W25Q128
1 X USB Programmer
1 X Pinboard

ตัวอย่างการใช้ CH341A ในโหมด USB to Serial TTL (RX TX) โดยการเซ็ตจัมเปอร์ ให้อยู่ที่ตำแหน่ง 2-3 สำหรับการ upload Firmware กล่องรับสัญญาณดาวเทียม
|
