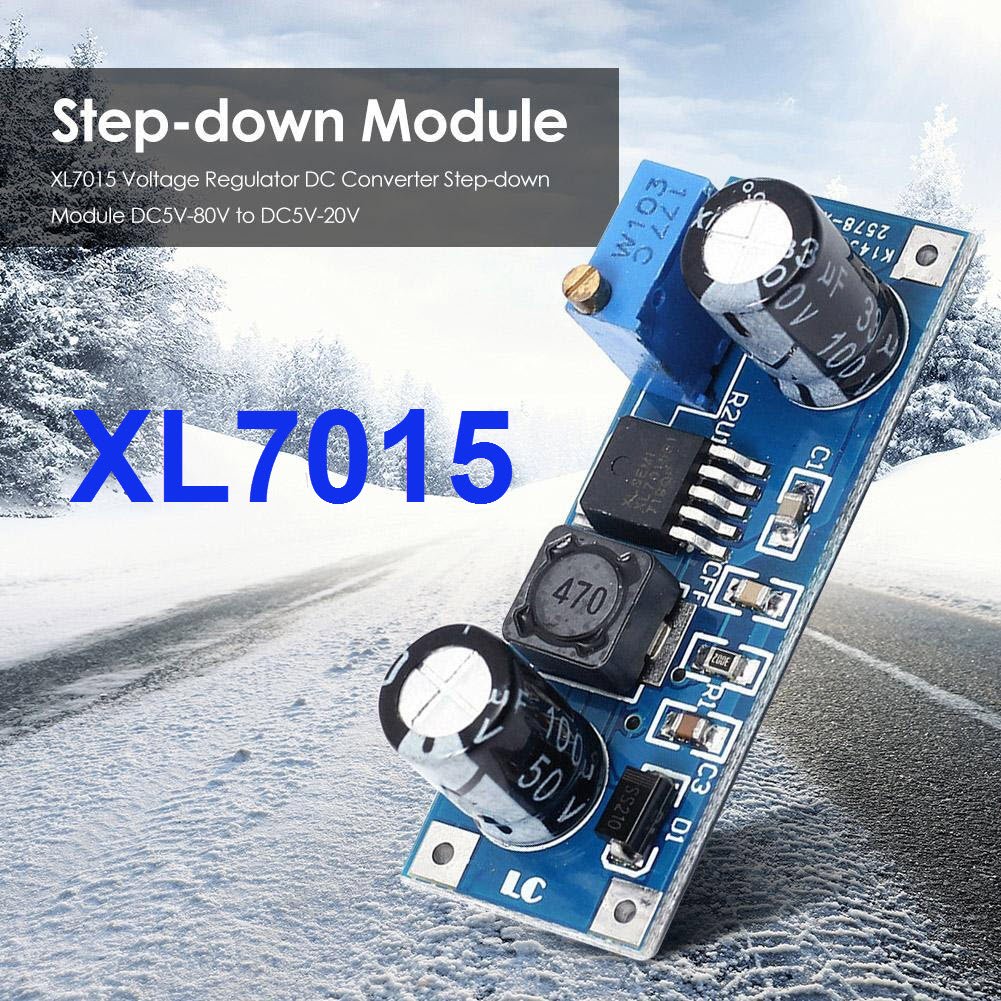

XL7015 HV 5-80V to 5-20V Step Down Adjustable Power Module

Product introduction



The XL7015 DC-DC step-down module is a high-efficiency, high-voltage step-down DC-DC converter that provides high 0.8A output current capability, low ripple, excellent linearity regulation and load regulation, and high input voltage 80V, far more than 2596 modules. The chip has a variety of built-in protection mechanisms. Can be applied to electric vehicle controllers.

5V to 80V wide input voltage range;

The output voltage is adjustable from 5V to 20V;

Small pressure drop 1V;

Big switch current 0.8A;

Recommended output power is less than 7W;

Built-in over-temperature shutdown protection, output short circuit protection, over-current protection;

Excellent linearity and load regulation

Board size: 16mm *44mm;



Wiring instructions

VIN: voltage input (5V-80V);

 GND: input voltage ground;

 VOUT: output voltage terminal (5V-20V);

 GND: output voltage ground;
