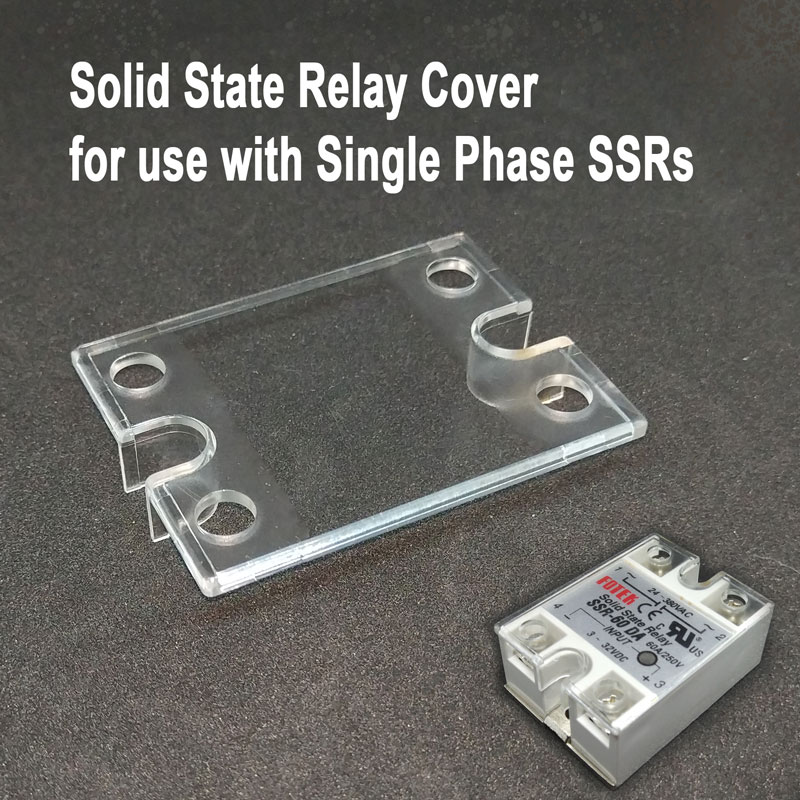

SSR Solid State Relay Cover (Protective Covers)

Crydom Series 1 Solid State Relays

Crydom Series 1 range of solid state relays offer a wide range of ratings from 10 A to 125 A at 24 V ac to 280 V ac. Crydom has incorporated many features within this particular range of panel mount solid state relays including AC or DC control and SCR output for heavy industrial loads. Both zero-crossing (resistive loads) and random-fire (inductive loads) output versions are available.



600 V blocking capacity SCR Output for heavy industrial loads

Internal snubber circuitry

Filter, cover and thermal pads available

Terminal Type Screw; Saddle Clamp

Input-output Capacitance: 8 pF

Isolation Voltage 4 kVrms

Dimensions: H22.9 x D58.4 x W45.7mm

Note

Heat sink not included. For load current de-rating and heat sink details see manufacturers datasheet



Caution

Derating will limit the maximum load current at temperatures above 25 °C



Approvals

UL recognised component for Canada and US, VDE



Crydom Solid State Relay and Accessories



*
