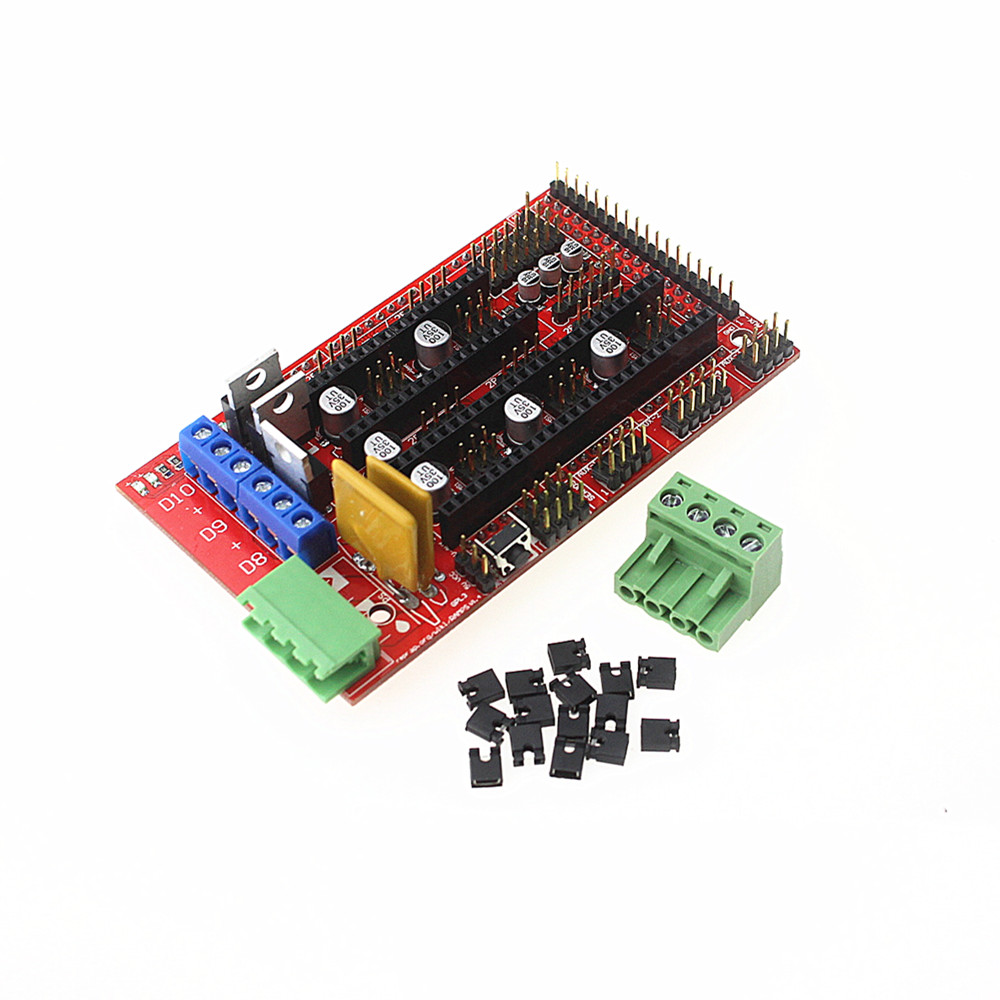

3D Printer Controller RAMPS 1.4 Shield Board For Arduino Reprap Prusa

   This list is Pololu trillion rupiah , or ramps short. It was designed as a low-cost small

   package RepRap needs to accommodate the entire electronics . Oblique interfaces with the

   powerful Arduino MEGA platform Arduino Mega , and have plenty of room for expansion. On

   the stepper drives and a Arduino MEGA shield extruder control electronics for easy maintenance,

   replacement parts , upgrades and expansion capabilities , including plug-in modular design.

   In addition, some Arduino expansion boards can be added to the system , as long as the

   main ramp plate is saved to the top of the stack .

   The board is mainly based on Adrian 's Pololu_Electronics and work Tonok 's . The proposed

   anti- Vick copper etching method . Vick is also inspired by the work of EasyDrivers .

   Adrian'sPololu_Electronics circuit design mainly based on Joaz RepRapSource.com provide initial

   pin definitions and many design improvements. Too much inspiration , advice, and from Prusajr,

   Kliment, Maxbots, Rick, and many other ideas RepRap community.

   1×Ramps 1.4 controller board
