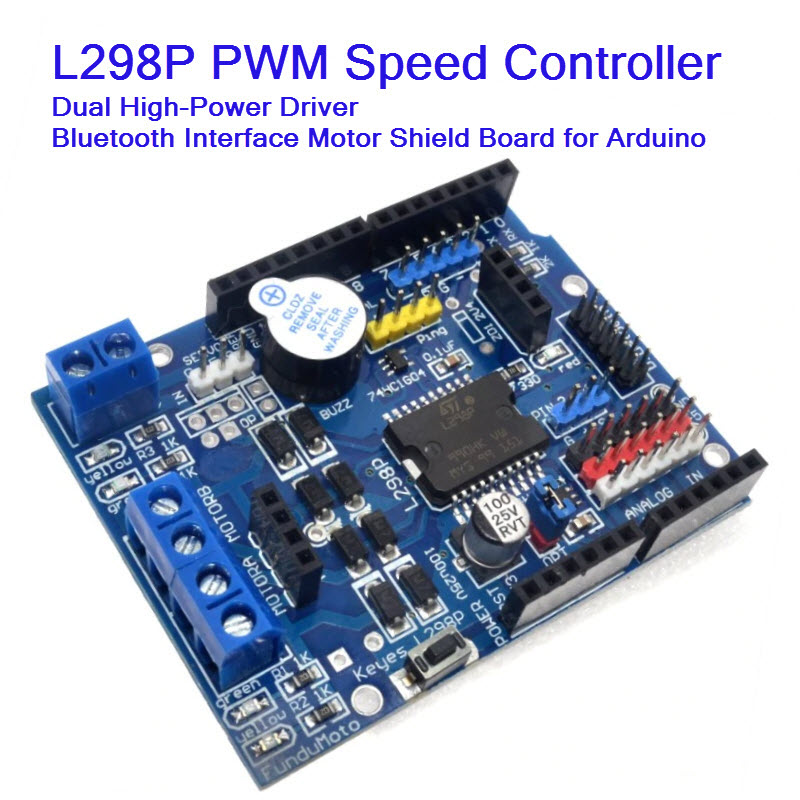

L298P Motor Shield Board , PWM Speed Controller Dual High-Power H-bridge Driver

L298P Shield DC motor drives using

high-power motor driver chip dedicated L298P,can directly drive two DC motors,drive current up to 2A,motor output using eight-speed Schottky diodes as protection. Stack design can be directly plugged in to Arudino UNO R3



1 logical part of the input voltage VD: 5V

2.driven part of the input voltage VS: VIN Input 6.5 ~ 12V, PWRIN 4.8 ~ 35V input

3 logical part of the work current Iss: <36mA

4.driven part of the operating current Io: <2A

5 maximum power dissipation: 25W (T = 75 Celsius)

6.control signal input level: High 2.3V low -0.3V

7 Working temperature: -25 + 130 Celsius

8 hardware interface: 5.0mm pitch terminal

9 belt clip and can be controlled via front row access signal

10. Drive Type: Dual power H-bridge driver

11 Pin occupancy: D4 ~ D7 direct drive motor

12 supports PWM / PLL mode motor speed control

13 Size: 68 * 53mm
