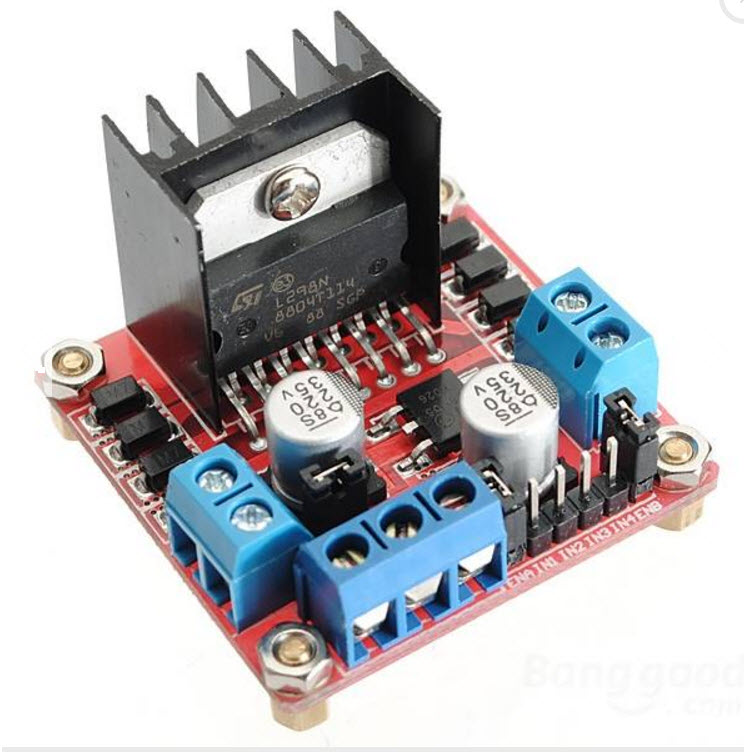

L298N DC Motor Driver Module Robot Dual H Bridge for Arduino PIC AVR

Specifications

• Driver: L298N Dual H Bridge DC Motor Driver IC
• The terminal supply area of driven part Vs: +5 V ~ +35 V; such as the need to take power within the board, the supply area Vs: 7V ~ 35V
• The peak current of driven part Io: 2A
• the terminal supply of area the logical part Vss: +5 V ~ +7 V (can take power within the board +5 V)
• the operating current range of the logical part : 0 ~ 36mA
• control signal input voltage range:
• Low:-0.3V ≤ Vin ≤ 1.5V
• High: 2.3V ≤ Vin ≤ Vss
• enable signal input voltage range:
• Low: -0.3 ≤ Vin ≤ 1.5V (control signal is invalid)
• High: 2.3V ≤ Vin ≤ Vss (control signal active)
• Maximum power consumption: 20W (when the temperature T = 75 °C)
• Storage temperature: -25 °C ~ +130 °C
• Driver Board Size: 55mm * 49mm * 33mm (with fixed copper pillar and the heat sink height)
• Driver Board Weight: 33g
• Other Extensions: control of direction indicators, the logic part of the plate to take power interface.

Related Documents

• Datasheet

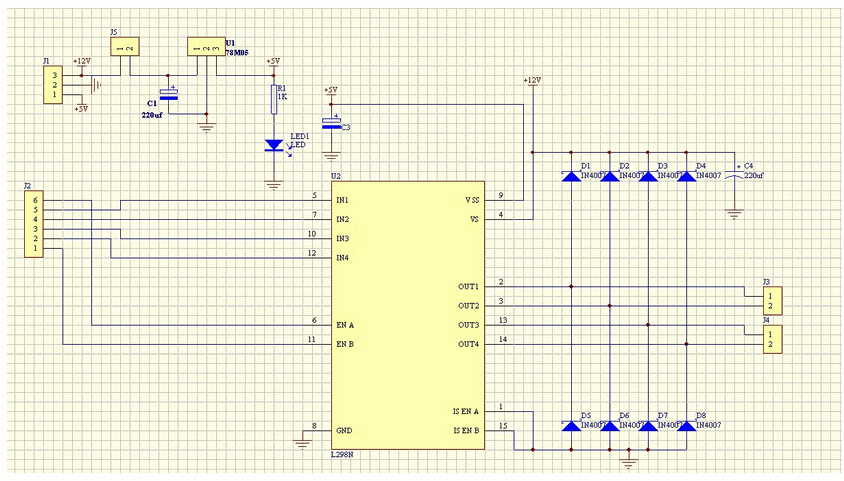

• Example Schematic: Arduino Uno with L298N Motor Driver Module
• Sample Code: Arduino Uno interfaced with L298N Motor Driver Module
• Arduino Library: A clean implementation Arduino Library for L298N module
• Example of Parallel L298N channels for higher current

Note:
This module has a built-in 5v power supply, when the driving voltage is 7v-35v, this supply is suitable for power supply, DO NOT input voltage to +5v supply interface, however ledding out 5v for external use is available.
When ENA enable IN1 IN2 control OUT1 OUT2
When ENB enable IN3 IN$ control OUT3 OUT4

Note:  Package is not included the screws.

Package included:
1 x 236 L298N Dual H Bridge DC Stepper Motor Drive Controller Board Module arduino

How to Make a BiPolar stepper Motor Work Part 2 L298; Wiring in videos 3 & 4
