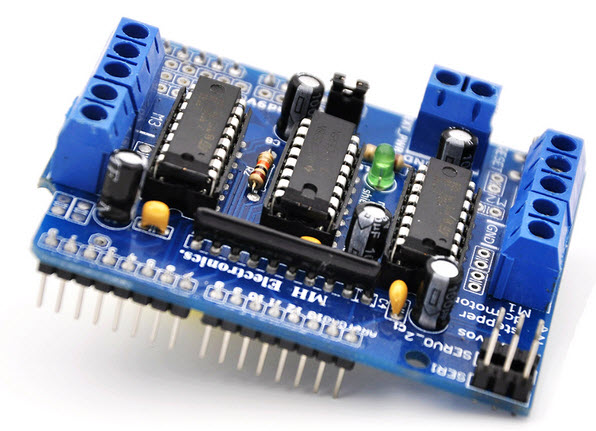

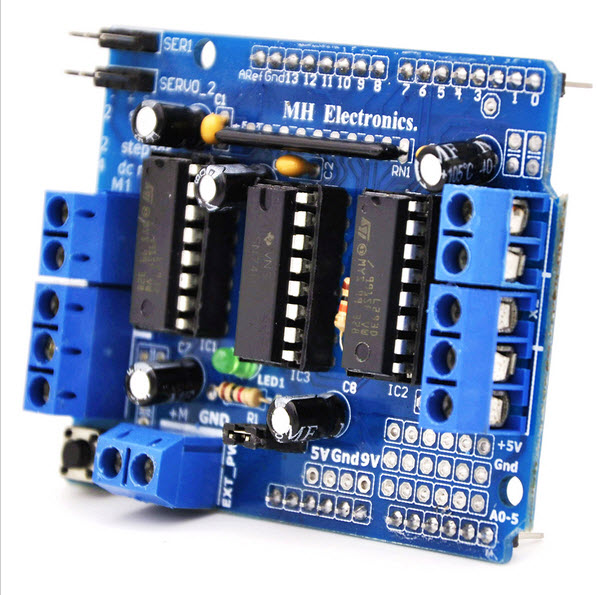

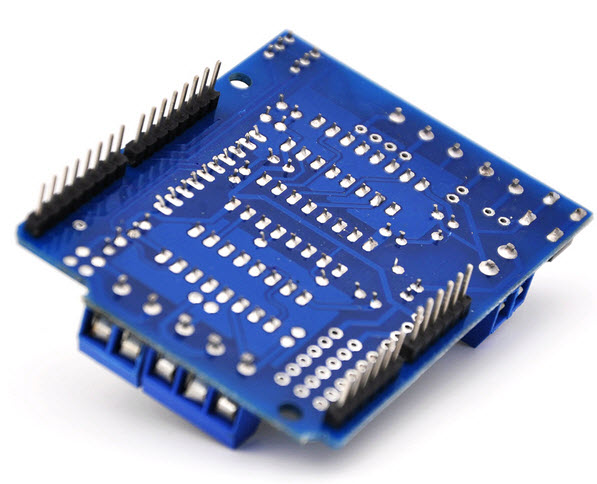

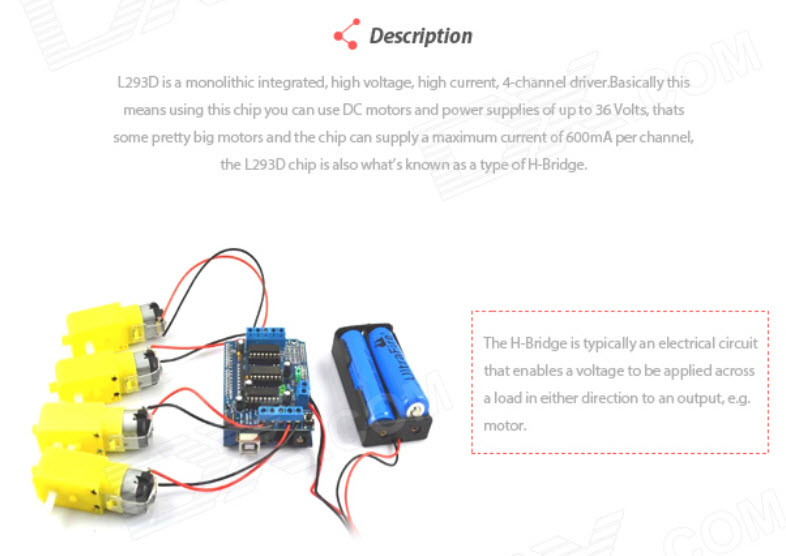

L293D Motor Control Shield for Arduino MEGA2560 UNO R3

Multi-Motor Driver Shield (2-L293D)

• Four H-Bridges: Two L293D Motor driver chips
• L293D is rated at 0.6A per bridge (1.2A peak) with thermal shutdown protection, internal kickback protection diodes.

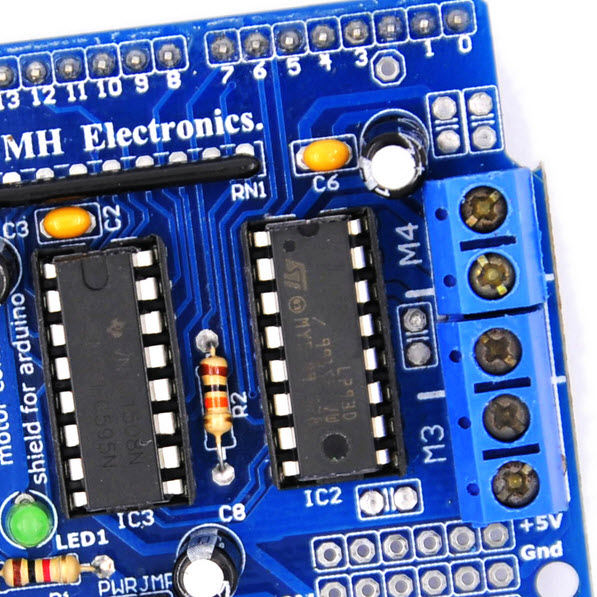

• Motor Voltages from 4.5VDC to 16VDC. (up to 36V if C6 and C7 are upgraded)

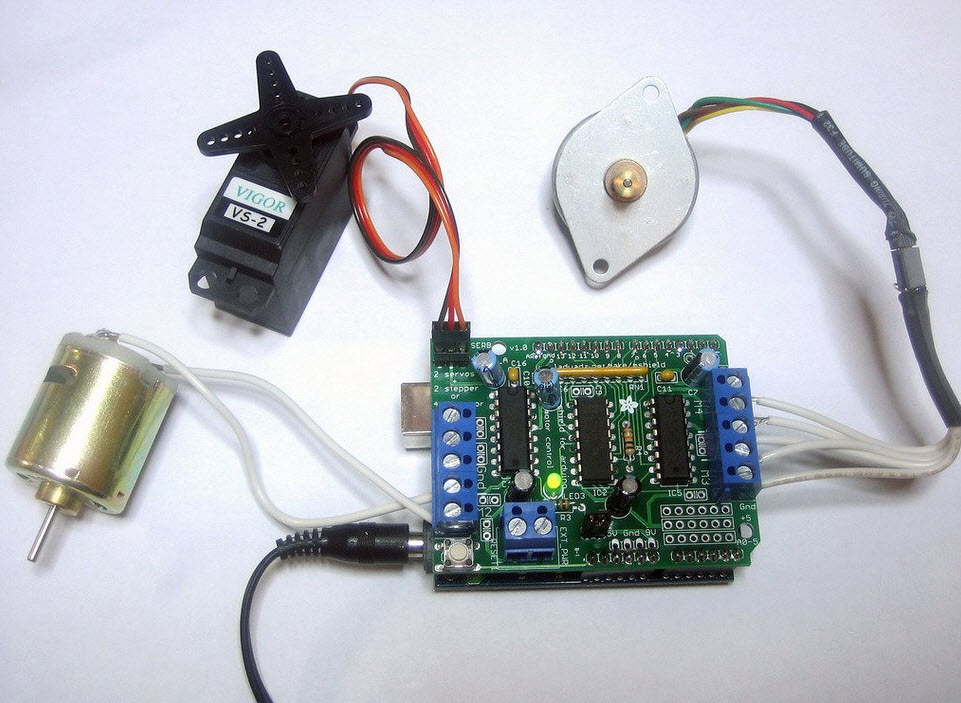

• Up to 4 bi-directional DC motors with individual 8-bit speed selection (256 speeds)
• Up to 2 stepper motors (unipolar or bipolar)
• Pull down resistors keep motors disabled during power-up

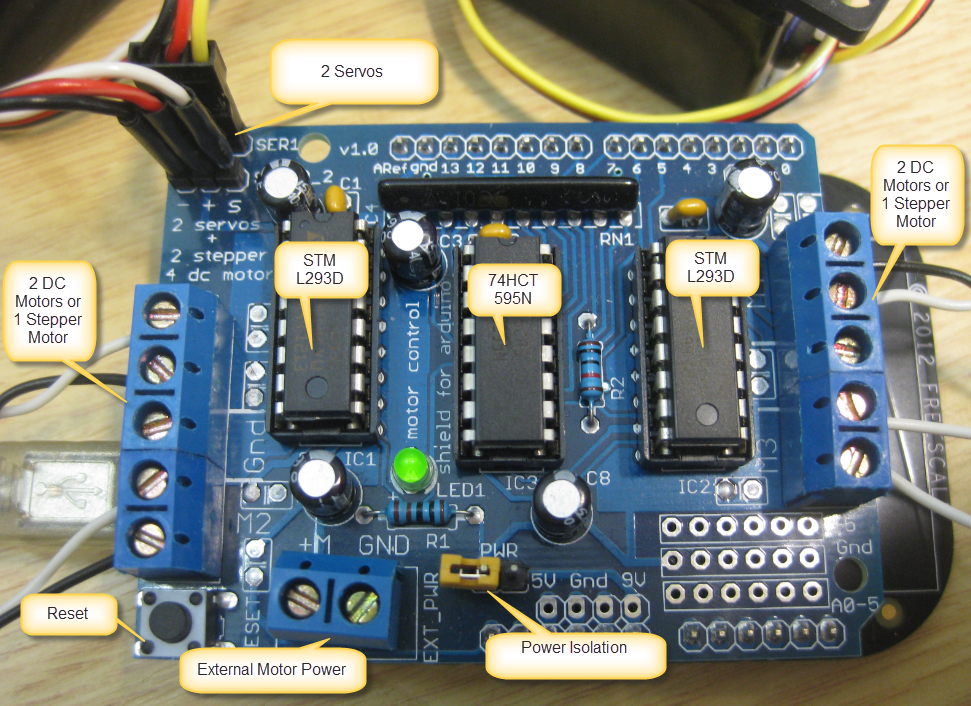

• Separate Logic and Motor power connections
• Terminal block connectors for motors and power
• 2 connections for 5V 'hobby' servos

L293D DATA SHEET HERE:

SCHEMATIC DIAGRAM HERE:

AFmotor Driver Library HERE:

AccelStepper Driver Library HERE:

How-To and Examples from Lady ADA HERE:

Motor Drive Shield Board Module L293D for Arduino
